Kludi 46mm Lever Mixer Cartridge

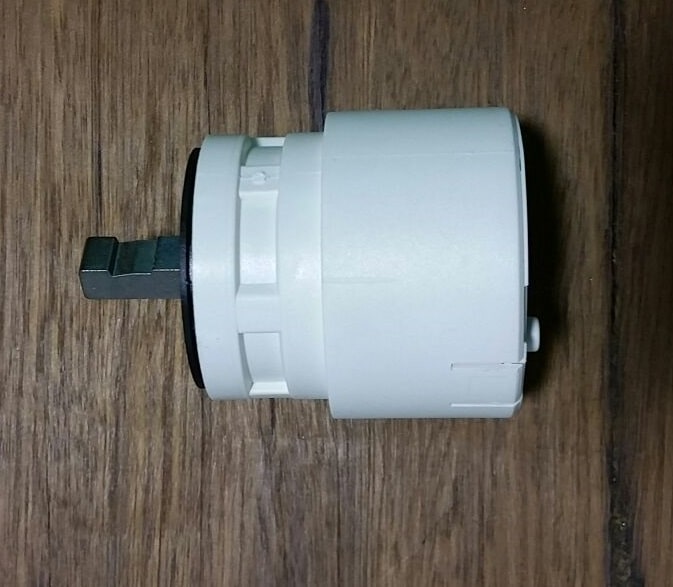

The Kludi range uses two different cartridge sizes — 35mm and 46mm — and it’s important to order the correct one. The 46mm cartridge is the larger of the two and is identified by a metal pin on the top that slides into the lever handle. The 35mm Kludi Logo cartridge uses a plastic insert instead.

As a general guide:

• 46mm cartridge — suits Kludi kitchen mixers and models with noticeably large, wide lever handles

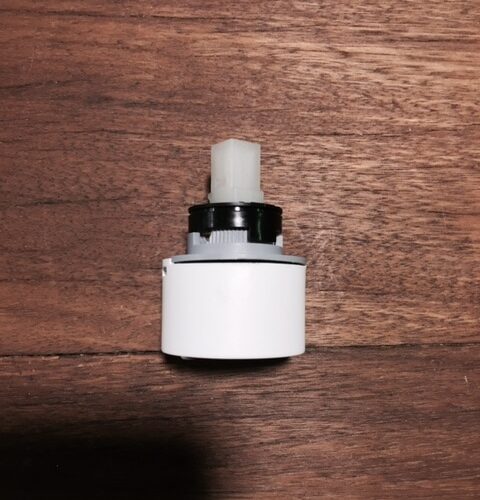

• 35mm cartridge — suits the Kludi Logo range (bathroom basin and shower mixers)

If you’re unsure which cartridge your tap requires, email a photo of your mixer to sales@sydneybathroomware.com.au and our team will confirm the correct part before you order.

What taps does the Kludi 46mm cartridge fit? The 46mm cartridge suits Kludi mixer taps with large-diameter lever handles, most commonly found in kitchen mixer models from the Kludi range. If you have a Kludi Logo bathroom tap, you likely need the 35mm cartridge instead.

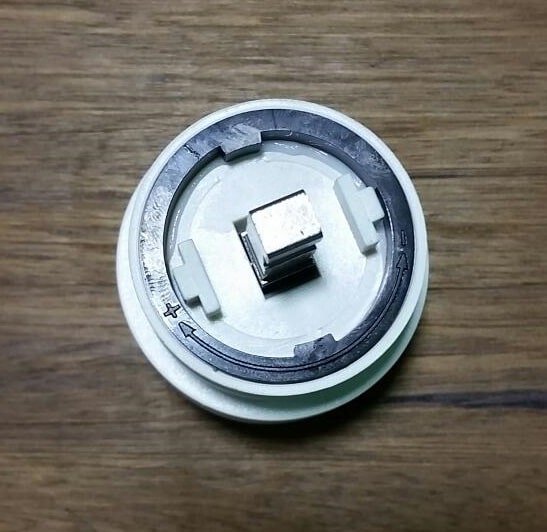

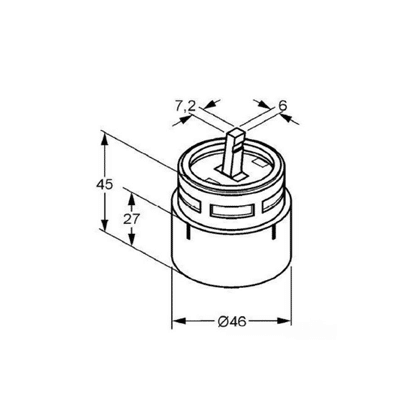

How do I tell if I need the 46mm or 35mm Kludi cartridge? The easiest way is to look at the top of the existing cartridge once removed — the 46mm version has a metal pin that engages with the handle, while the 35mm version has a plastic insert. You can also identify it by the overall diameter: 46mm across vs 35mm across. If in doubt, send us a photo.

Is this a genuine Kludi cartridge? Yes. Sydney Bathroomware stocks genuine Kludi spare parts. We are the exclusive Australian stockist.

Can I install this cartridge myself? Cartridge replacement on a single-lever mixer is generally straightforward for a competent DIYer — turn off the water supply, remove the handle, unscrew the retaining nut, swap the cartridge, and reassemble. However, if you’re unsure, we recommend engaging a licensed plumber.

Do you ship Kludi cartridges outside Sydney? Yes — we ship Australia-wide. Orders are typically dispatched within 1 business days from our Mortdale Warehouse, NSW.
